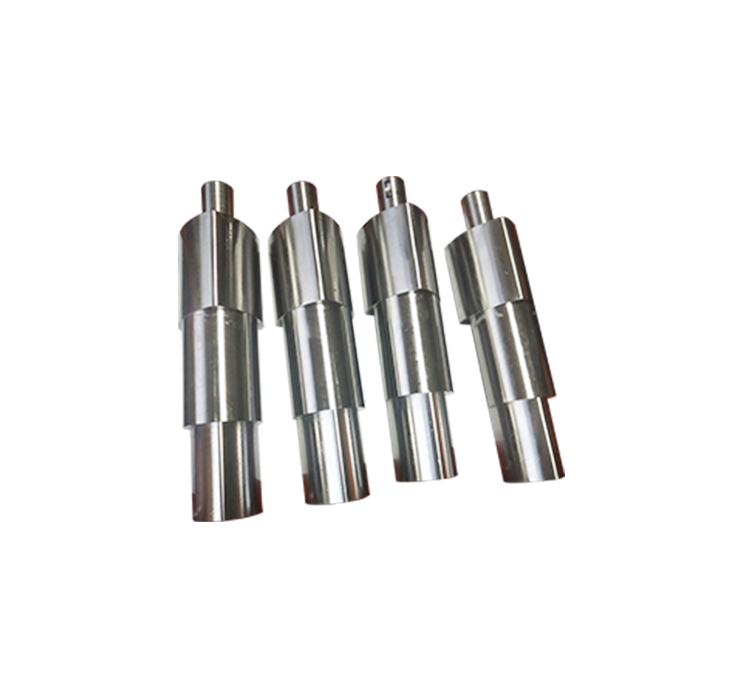

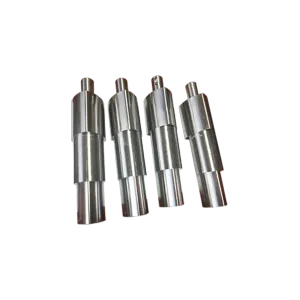

1. What Is a Custom Non-Standard Camshaft?

A camshaft is a rotating mechanical component that uses one or more cam profiles to create controlled movement. As the shaft rotates, the cam surface pushes or guides another component, often called a follower. The follower then moves according to the shape of the cam.

The basic idea is quite easy to understand. Imagine a round object with a specially shaped section on it. When the object turns, the changing shape causes another part to move up, down, forward, backward, or through another planned path. By changing the profile, we can change the movement.

In real machinery, however, the situation is more complicated. The camshaft may need several cams positioned at different angles. The shaft may also need a special diameter, keyway, mounting hole, shoulder, thread, bearing seat, or other machined feature. The machine may require the camshaft to work at a particular speed and in a specific sequence with other mechanisms.

This is why we call some of these products non-standard camshafts. They are made for a particular machine or application instead of following one common commercial size.

Our custom non-standard camshaft manufacturing service is designed for these situations. We can manufacture components based on customer drawings, specifications, existing equipment requirements, and other technical information. Depending on the project, our work can include machining, cam design, irregular profile processing, profile grinding, dimensional inspection, and final verification.

I always recommend starting with the actual machine requirement. A drawing is important, but knowing what the camshaft needs to do is also useful. For example, if the shaft controls a feeding mechanism, the required movement and timing may be more important than simply copying the outside appearance of an old component.

Common Custom Camshaft Requirements

• Non-standard shaft diameters and overall lengths

• Multiple cam profiles on one shaft

• Special cam positions and angular relationships

• Custom mounting holes, keyways, shoulders, and threads

• Irregular or application-specific cam profiles

• Custom material requirements

• Replacement camshafts based on existing components

• Camshafts designed for automated production equipment

Source: Dongguan Jifan Precision Machinery Co., Ltd. product and service information supplied for this page. The table describes typical project inputs and is not a fixed specification for every camshaft order.

2. How Does a Camshaft Work in Automated Machinery?

The working principle of a camshaft is based on controlled mechanical movement. The shaft rotates, the cam profile changes the contact position with the follower, and the follower follows that changing profile.

This allows one rotating component to control another repeated movement. That may sound basic, but it is extremely useful in production machinery. A machine can use the camshaft to control feeding, lifting, pressing, cutting, positioning, clamping, indexing, filling, or other repeated actions.

The shape of the cam determines the movement. If the profile rises gradually, the follower can move gradually. If the profile remains at the same radius for part of the rotation, the follower can stay in a holding position. When the profile returns, the follower can move back.

In a more complicated machine, several cams can be placed along one shaft. Each cam can control a different mechanism. Their positions can be arranged so that the machine performs several operations in the correct order.

For example, one cam may control a feeder while another controls a clamp. The feeder needs to move the product into position before the clamp closes. If the cam positions are not correct, the two actions may happen too early or too late. That is why the design and machining of a custom camshaft need to consider the whole motion sequence.

I often explain this to customers in a simple way: the shaft is the carrier, but the cam profiles are the parts that tell the machine what to do.

Camshaft and Follower Relationship

The follower is one of the most important parts working with a camshaft. Depending on the machine, it can be a roller follower, flat follower, or another mechanical arrangement. The contact method affects how the cam profile is designed and manufactured.

The working surface of the cam therefore needs to match the intended mechanism. A profile that looks correct visually may still create a different movement if its geometry is not correct.

Why Non-Standard Designs Are Often Necessary

Every machine has its own physical space and movement requirements. A standard camshaft may have the wrong shaft length, wrong cam spacing, wrong profile, wrong mounting arrangement, or simply not provide the required movement.

In those cases, a custom camshaft for specialized machinery gives the machine designer much more freedom. Instead of compromising the machine design, the mechanical component can be manufactured around the intended system.

This is especially useful for automation equipment where several movements must repeat in a fixed sequence. A properly designed camshaft can provide mechanical synchronization without adding unnecessary complexity to the machine.

3. What We Offer in Custom Camshaft Manufacturing

Our service is not limited to cutting a shaft to a specified length. A custom camshaft can contain several different machining requirements, so we treat the component as a complete mechanical part.

Custom Camshaft Design

When customers have a new machine project, we can discuss the required cam movement and component configuration. The design needs to consider the machine cycle, installation space, shaft dimensions, cam positions, and other relevant requirements.

When a complete drawing already exists, we can manufacture according to the customer's approved design. When the design is still being developed, we can review the available technical information before production.

Precision Camshaft Machining

Our machining work covers custom shaft features and cam components according to the agreed drawings and specifications. Depending on the design, the machining process can involve different operations to create the shaft body, mounting areas, holes, keyways, and cam features.

Irregular Cam Grinding

Some camshafts use irregular profiles that are not suitable for a simple standard machining approach. We provide irregular cam grinding and related profile processing based on the required geometry.

Profile Grinding

Profile grinding is particularly important when the working contour of a cam needs controlled processing. The profile is directly connected to the movement of the follower, so we pay attention to the required geometry rather than treating the cam surface as an ordinary round surface.

Custom Eccentric Shafts and Crankshafts

Camshafts are only one part of our product range. We also manufacture eccentric shafts, crankshafts, plate cams, conjugate cams, and other custom precision components. This allows us to support customers whose machines use several different types of mechanical motion.

Source: Dongguan Jifan Precision Machinery Co., Ltd. manufacturing capabilities and product information supplied for this page. Actual services and processes depend on the specific camshaft design.

4. Manufacturing Process: From Drawing to Finished Camshaft

When I receive a new camshaft project, I do not like to jump straight into machining. A few minutes spent understanding the requirement can save much more time later.

Step 1: Review the Customer Drawing

We first review the available drawing, CAD data, sample, or technical specification. I look at the shaft dimensions, cam profile, cam positions, mounting features, material, quantity, and other important details.

If there is a critical movement requirement, I also want to understand what the camshaft is controlling. This helps us see the part in its actual working environment instead of treating it as an isolated piece of metal.

Step 2: Confirm the Design and Specifications

Before manufacturing, the important requirements need to be clear. This can include the shaft configuration, cam geometry, angular position, mounting dimensions, material, and inspection requirements.

For a replacement camshaft, the existing component can provide useful information. However, I prefer to confirm the actual required dimensions and application rather than blindly copy a worn or damaged part.

Step 3: Plan the Machining Process

The manufacturing route depends on the part. A simple shaft and a complicated multi-cam shaft will not necessarily use the same process. We consider the geometry, material, quantity, and required profile before arranging production.

Step 4: Shaft Machining

The shaft body and basic features are machined according to the drawing. Depending on the design, these features can include different diameters, shoulders, holes, keyways, threads, and mounting sections.

Step 5: Cam Profile Processing

The cam profile is then processed according to the approved design. For suitable components, profile grinding or irregular cam grinding may be used. The purpose is to create the required working contour so that the finished component can produce the intended mechanical movement.

Step 6: Dimensional Inspection

After machining, we inspect the finished component according to the agreed requirements. Important dimensions and relevant features are checked before final verification.

Step 7: Final Verification

We perform final quality checking before delivery. The focus of the inspection depends on the customer drawing and the critical characteristics of the product.

Step 8: Protective Packaging and Delivery

Finished camshafts are protected with standard packaging to reduce the risk of damage during handling and transportation. If a project requires special packaging, customized packaging can be arranged.

Depending on destination and order size, products can be transported by express, air freight, sea freight, or another suitable method.

The production cycle is not the same for every project. A custom camshaft with several profiles and special machining requirements naturally needs a different production plan from a simple component. We consider product complexity, material, quantity, and customization requirements when arranging the schedule.

5. Key Advantages of Non-Standard Camshaft Manufacturing

The main advantage of Custom Manufacturing is flexibility. A standard component is designed to suit a general application. A non-standard component is designed to suit a specific application.

1. Designed Around the Machine

We can manufacture the camshaft according to the actual dimensions and working requirements of the equipment. This is useful when installation space is limited or when the machine requires a special mechanical arrangement.

2. Flexible Cam Profiles

The cam profile controls movement. By using a customized profile, the machine designer can achieve a particular movement sequence rather than being limited to the movement offered by a standard component.

3. Multiple Cam Configurations

A single camshaft can carry multiple cam profiles. Their positions can be arranged according to the machine's timing requirements. This is useful for automated machinery where different operations need to work together.

4. Support for Special Mechanical Parts

Our manufacturing scope includes not only camshafts but also cams, eccentric shafts, crankshafts, and other Custom Precision Parts. This can make communication easier when several components belong to the same equipment project.

5. Inspection Based on Agreed Requirements

We do not use one generic inspection list for every component. The relevant dimensions and quality requirements are based on the customer drawing and agreed specifications.

6. Suitable for Different Production Applications

Custom camshafts can be used in many kinds of automated machinery. Their value comes from the movement they create, not from one particular industry.

Source: Dongguan Jifan Precision Machinery Co., Ltd. product and engineering information supplied for this page. This is a practical comparison of standard and custom manufacturing approaches, not a comparison of specific commercial products.

6. Industries Using Custom Camshafts and Precision Mechanical Parts

Our custom camshaft components are used in automated machinery serving different industries. The machines are different, but many have one thing in common: they need repeated mechanical movement that must happen at the right time.

Daily Chemical Industry

Daily chemical equipment can include filling, packaging, feeding, sealing, and positioning systems. Custom camshafts can help control repeated mechanical actions in these automated processes.

Biopharmaceutical Equipment

Automated equipment in the biopharmaceutical field may contain several synchronized mechanical mechanisms. Custom precision parts can be produced around the machine's specific installation and movement requirements.

Food Processing Machinery

Food processing and packaging equipment often needs controlled feeding, indexing, cutting, positioning, and other repeated actions. Cam mechanisms can be used where mechanical movement needs to follow a defined cycle.

Electronics Manufacturing

Electronics production equipment often contains compact mechanisms that repeat the same operation many times. A custom camshaft can be designed to fit the available space while providing the required movement.

Plastics and Hardware Machinery

Machinery used for plastics and hardware processing may include pressing, forming, feeding, cutting, and positioning operations. Custom camshafts and eccentric shafts can be manufactured for these specialized mechanical systems.

Printing Machinery

Printing equipment often requires coordinated movement between multiple components. A properly designed camshaft can help control repeated mechanical actions and maintain the required sequence.

Beverage Equipment

Beverage production and packaging systems can involve conveying, filling, capping, labeling, and other automated operations. Custom mechanical components can be manufactured according to the machine's specific structure and movement requirements.

We do not limit our custom camshaft manufacturing to one application. If the machine requires a specialized rotating component to control mechanical movement, we can review the requirement and determine whether our manufacturing capabilities are suitable.

7. Why Choose Jifan for Custom Non-Standard Camshaft Manufacturing?

I know that choosing a machining supplier is not only about price. For a custom mechanical component, the supplier needs to understand the drawing, ask the right questions, control the manufacturing process, and communicate when something needs clarification.

At Dongguan Jifan Precision Machinery Co., Ltd., we specialize in cam mechanisms and precision mechanical components. Our capabilities include Custom Cam Machining, cam design, profile grinding, irregular cam grinding, eccentric shaft machining, crankshaft machining, plate cams, conjugate cams, and other custom parts.

Experience with More Than One Type of Motion Component

Our product range is not limited to camshafts. We also manufacture components that use different mechanical principles. This helps us understand that the right solution depends on the equipment rather than the name of the part.

Strong Focus on Customization

We work according to customer drawings, specifications, and equipment requirements. This makes our service suitable for OEM projects, replacement components, new automation equipment, and specialized production machinery.

Engineering Support for Cam-Related Projects

A camshaft project can involve questions about profile shape, cam position, shaft dimensions, and machine movement. We can discuss these points with customers before production so that the final part is based on a clear requirement.

Machining and Profile Processing

We provide precision machining, irregular cam grinding, and profile grinding. These capabilities are important when a camshaft includes both ordinary shaft features and specialized working profiles.

Inspection Before Delivery

Before delivery, products undergo machining, dimensional inspection, quality checking, and final verification according to the agreed specifications. We understand that a custom component has to fit the customer's machine, so inspection is an important part of the manufacturing process.

Flexible Logistics

We can arrange express, air freight, sea freight, or another suitable transportation method depending on the destination and order size. Standard protective packaging is used to help protect the component during transportation, and customized packaging can be arranged for special requirements.

Clear Commercial Arrangements

Payment terms are arranged according to the contract. Depending on the order, they can be related to quantity, production requirements, and project conditions. We confirm the commercial terms before production so the customer has a clear understanding of the order.

I also prefer to be realistic about production schedules. There is no useful reason to promise the same lead time for every camshaft. The actual production cycle depends on the design complexity, material, quantity, and customization requirements. Once we have the project information, the production plan can be evaluated more accurately.

8. Frequently Asked Questions About Custom Non-Standard Camshaft Manufacturing

Conclusion: A Camshaft Made for the Machine It Serves

A camshaft may look like a simple rotating shaft, but its actual job can be quite important. The shape of each cam, the position of the cams, and the relationship between the shaft and the rest of the mechanism can determine how an automated machine moves through its working cycle.

That is why I believe Custom Non-Standard Camshaft Manufacturing Services should start with understanding the application. We do not simply look at the outside shape of the component. We consider the drawing, machine structure, cam profile, material, quantity, mounting requirements, and inspection specifications before production.

At Dongguan Jifan Precision Machinery Co., Ltd., we provide Custom Camshaft Machining, cam design, precision machining, irregular cam grinding, profile grinding, and other customized manufacturing services. Our product range also includes custom cams, plate cams, conjugate cams, eccentric shafts, crankshafts, cam mechanisms, and other precision mechanical components.

These products are used in automated machinery and production equipment serving daily chemical, biopharmaceutical, food processing, electronics, plastics and hardware, printing, beverage, and other industries.

If you already have a drawing, CAD file, sample, or equipment specification, you can send it to us for review. If the design is still being developed, you can explain what movement the machine needs to perform. We can then discuss the appropriate manufacturing approach based on the actual project.

For us, the goal is not simply to make a camshaft that looks right. The goal is to make a component that fits the machine, follows the required design, and performs its intended mechanical function reliably.

Dongguan Jifan Precision Machinery Co., Ltd. provides Custom Non-Standard Camshaft Manufacturing Services for specialized machinery, automation equipment, and custom mechanical systems.
